13.56MHz Outdoor Fingerprint Access Control System Waterproof IP68 RFID Keyboard Mobile Phone NFC Electric Magnetic Strike Locks

$176.32$341.32

Color
Choose an option

$176.32$341.32

kit10
Kit10
kit11
Kit11
kit4-without-lock
Kit4 without Lock
kit5
Kit5
kit6
Kit6
kit7
Kit7
kit8
Kit8
kit9
Kit9
rfid-keypad-with-key
RFID Keypad with Key
Clear
Add to cart
Buy Now
SKU: 1005003187117566 Category:
  • Brand Name: OBO HANDS
  • Certification: NONE
  • Origin: CN(Origin)
  • Model Number: Kit F60-IC
  • Security Mode: Fail Safe
  • Direction: None
  • Fingerprint Capacity: 120 users
  • Card Capacity: 500
  • Working Voltage: DC12V
  • Working Frequency: 13.56MHz
  • Unlock Mode: Mobile phone NFC, Fingerprint, RFID Card, Password
  • WG interface: WG26 input/output
  • Type: Waterproof Access Control Kit
  • Lock1: 180KG Magnetic Lock
  • Lock2: Electric strike lock
  • Lock3: Electric drop bolt lock
  • Bracket: L/U/ ZL Bracket
  • RFID Keypad: F60-IC
  • Material of RFID Keypad: Aluminium alloy
  • Access control power supply: DC12V 3A
  • Type1: Door Access control system
  • Type2: RFID access control system
  • Type3: Waterproof Access control keypad
  • Type4: Fingerprint access control system

A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.

Product Description

IP68 Waterproof Fingerprint RFID Access Controller

High quality / 120 user capacity / 4 unlock method

Product Specification:
  • User capacity: 120

  • Material: Aluminium alloy metal material

  • Panel: touch screen panel

  • Working frequency: 13.56MHz

  • Card reading type: support MF 1K compatible card

  • Card reading distance: 0-5CM

  • Identification method: Fingerprint, RFID card, password, Mobile phone NFC.

  • Backlight: has blue backlight

  • Waterproof function: IP68 waterproof, can be installed outdoor

  • Doorbell button: support wired doorbell

  • Wiegand signal: WG26 input/output

  • Can set management card: yes

  • Working voltage: DC 12V

  • Working current: ≤ 30mA

  • Door opening time: 0-99 seconds

  • Working temperature: -20 ° C ~ 70 ° C

  • Working Humidity: 20% ~ 90%

  • Product size: 139*69*18mm

Product Details:

360 degree comprehensive fingerprint recognition, fast Identify Speed
For different angles of fingerprints, it can be quickly and accurately identified

Support Fingerprint, RFID Card, Password, and Mobile phone NFC to open the door

Support 120 fingerprints, 500 cards, 1 public password user capacity, more secure!

Can set Management card. Very easy to program!
Don't need to connect to computer.

Support Mobile phone NFC to unlock

Please make sure that your mobile phone has NFC function

Instruction about how to copy cards to your mobile phone NFC

1) Click " Wallet " APP
2) Click “ Cards ”
3) Click ADD button
4) Click " Access card “
5) Click "Copy your card "
6) Put the card under the phone, and wait reading card.
7) Add successfully

Made of Aluminium alloy material, high quality

Touch keyboard, very beautiful design. Has a door bell button, can install a wired door bell!

IP68 Waterproof. Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

Blue Backlight keypad

The digits number can be seen clearly even at dark



Power Supply:
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm

Door Exit Button:

Material:Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W  )

RFID Keyfobs:
13.56MHz frequency RFID key card
Operating frequency: 13.56MHz
Detection range: 0-10cm
Quantity: 10pcs
Color: blue. If you want other color, please contact us.

Package List

Kit5:  Suitable for wooden door, metal door. Convenient and beautiful. No need bracket
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)

Working Voltage: 12V ± 10%
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature:Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm(L / W / H)

Kit6: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs

Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the length of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

Kit7: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

Kit8: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs

If your door is frameless glass door, then will need a U bracket
Size of  U  Bracket:  130* 33 * 26mm (L/W/H)

Kit9: Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs

Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket:  170* 34 * 25mm (L/W/H)

Kit10: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs

If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)

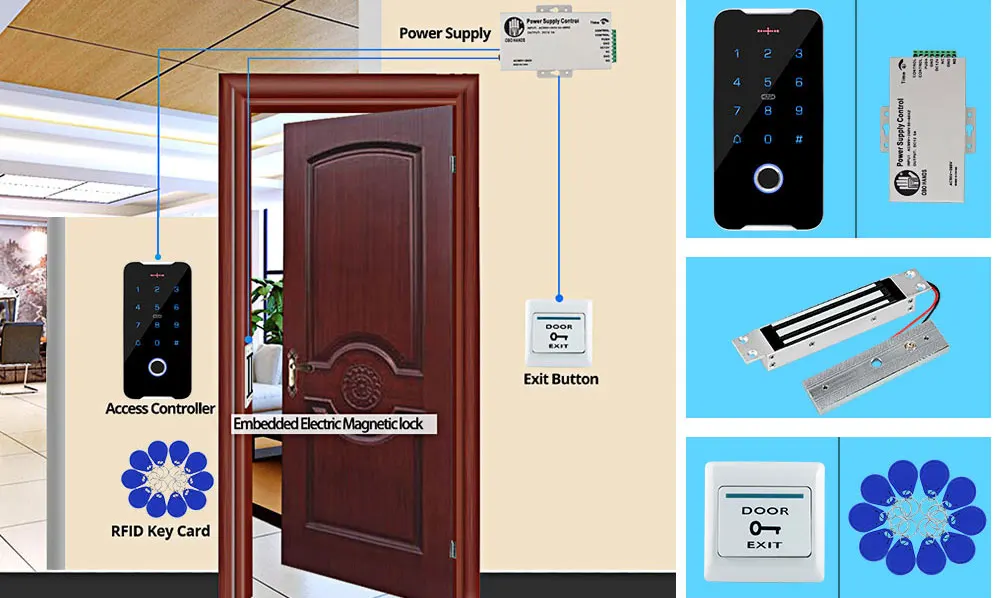

Kit11: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

Size of the Lock:            192Lx33Wx20H(mm)
Size of Armature Plate:  139Lx32x11H(mm)
Holding Force:                180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA

Wiring Diagram
